12 vs 14 Gauge Wire: The Complete Cost & Safety Decision Guide for Homeowners

A 100-foot run of 12 AWG copper wire carrying 15 amps at 120 volts loses 3.6% voltage, while the same run in 14 AWG loses 5.7% — exceeding the 3% threshold recommended for branch circuits. That gap can dim your lights, overheat connections, and shorten appliance life. But if you only need to wire a 6-foot lighting run, the stiffer, costlier 12-gauge cable might be overkill. This decision isn’t about choosing the best wire; it’s about matching the wire to the job with full visibility into cost, safety, and electrical performance.

What’s the Difference Between 12 Gauge and 14 Gauge Wire?

AWG wire sizing follows a logarithmic scale: each decrease of 2 in gauge number roughly doubles the conductor’s cross-sectional area. 12 AWG copper has a diameter of about 0.0808 inches (2.05 mm) and a cross-section of 3.31 mm². 14 AWG measures 0.0641 inches (1.63 mm) with 2.08 mm². The physical difference — 26% larger diameter — creates a cascade of electrical and mechanical effects.

The core trade-off is resistance versus material volume. 12 AWG wire exhibits only 1.588 ohms per 1,000 feet at 20°C, while 14 AWG comes in at 2.525 ohms per 1,000 feet — roughly 60% higher resistance. Lower resistance means less power dissipated as heat and less voltage lost along the run. In a 15A circuit, that resistance difference translates into measurably lower operating temperature and more headroom before insulation breakdown.

Ampacity ratings vary by insulation temperature class. For typical THHN or NM-B cable with 60°C rated terminals, 14 AWG is limited to 15A and 12 AWG to 20A. When used with 75°C or 90°C rated equipment, the figures rise to 20A for 14 AWG and 25A for 12 AWG, though the National Electrical Code (NEC) 240.4(D) restricts overcurrent protection to 15A and 20A respectively for these sizes unless specific exceptions apply.

Cost Comparison: Is 12 Gauge Wire Worth the Extra Money?

A quick shelf scan shows 14/2 NM-B cable priced around $0.20 to $0.25 per foot, while 12/2 runs $0.30 to $0.40 — a 50% to 60% premium. But sticker price is only one part of the total cost picture. Installation labor, energy losses, and potential rework all add weight to the decision.

For a typical home project — say, adding a new 20A kitchen circuit 100 feet from the panel — the material difference is about $15 to $20. Electricians often charge 10% to 20% more to work with 12 AWG because it requires more force to bend, strip, and push through conduit, adding roughly $25 to $40 to the installation bill for that same run. So the upfront premium is around $45 to $60.

Over a 10-year period, however, the resistance advantage starts to pay back. A 12 AWG wire carrying an average 12A load 8 hours per day wastes about 38 kWh less per year than 14 AWG over 100 feet. At $0.12 per kWh, that’s a $4.56 annual savings, or roughly $46 across a decade — nearly offsetting the initial premium. For longer runs or higher-duty cycles, the return tilts firmly in favor of 12 AWG.

If the project already requires a 20A circuit — common for kitchen countertops, laundry, and bathroom receptacles — 12 AWG is non-negotiable per code. But for 15A lighting circuits, the long-term cost is nearly identical, and 14 AWG’s flexibility often makes it the better installation choice. For large-volume contractors, PVC insulated cables sourced in bulk tighten these numbers further.

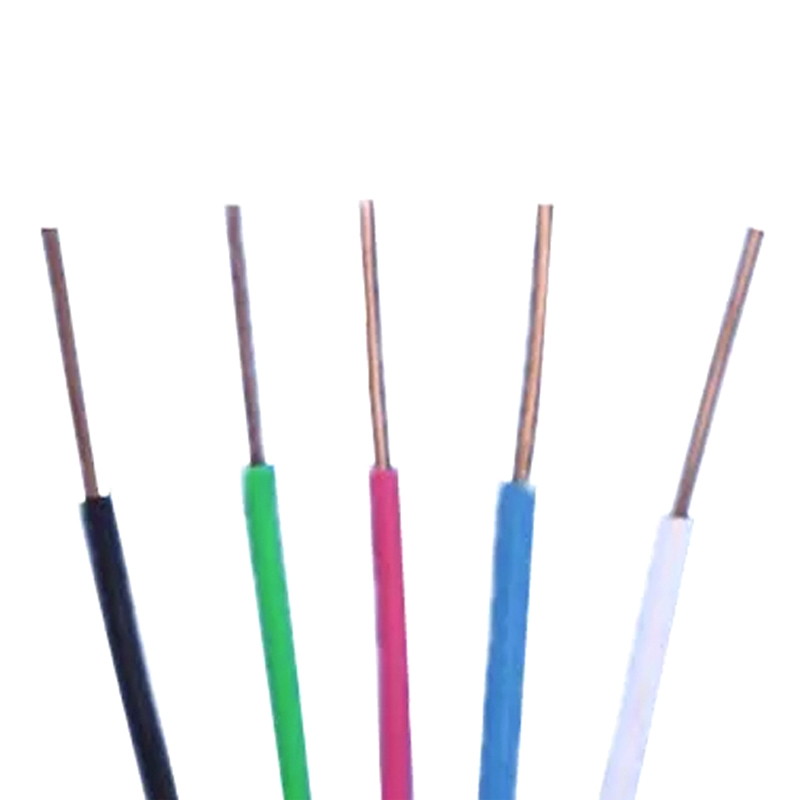

XLPE/PVC Insulated Cable (wire) Rated Voltage Upto and Including 450/750V Suppliers, Company - Jiangsu Dongfeng Cable Co

Dongfeng China wholesale XLPE/PVC Insulated Cable (wire) Rated Voltage Upto and Including 450/750V suppliers and XLPE/PVC Insulated Cable (wire) Rated Voltage Upto and Including 450/750V company, deta

View Product →

Voltage Drop: Why It Matters and How to Calculate It

Voltage drop is the silent performance thief in any circuit. When voltage at the load drops below equipment rating, motors run hotter, incandescent bulbs glow dimmer, and sensitive electronics may malfunction. The NEC recommends a maximum 3% voltage drop for branch circuits and 5% combined feeder plus branch drop.

The formula for single-phase AC is straightforward: Voltage Drop (V) = 2 × Length (ft) × Current (A) × Resistance (Ω/ft). Resistance per foot for 12 AWG is 0.001588 Ω and for 14 AWG is 0.002525 Ω. For a 15A load, a 100-foot 14 AWG run yields a 7.58V drop — 6.3% of 120V, far exceeding the recommendation. The same circuit in 12 AWG drops only 4.76V (3.96%).

When runs exceed 100 feet, even a 15A circuit benefits from upsizing to 12 AWG. In outdoor or underground applications where moisture resistance becomes critical, crosslinking polyolefin insulated cables provide added durability alongside lower resistance. The rule is simple: if voltage drop exceeds 3%, move up one gauge size or shorten the run.

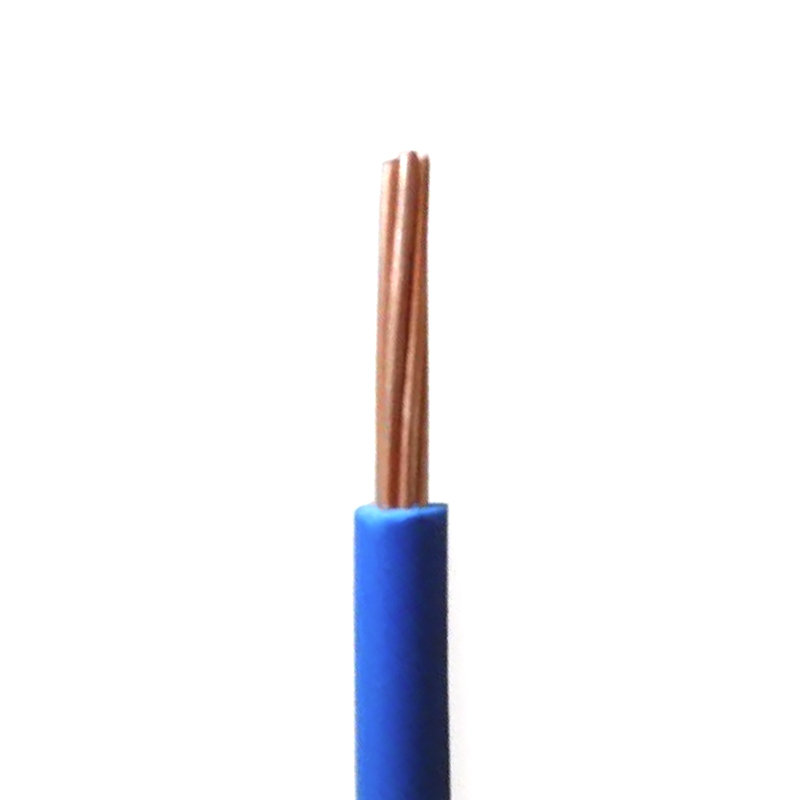

Cross-linking Polyelefine Insulated Wire And Cable With Rated Voltage Up To And Including 450/750V Suppliers, Company -

Dongfeng China wholesale Cross-linking Polyelefine Insulated Wire And Cable With Rated Voltage Up To And Including 450/750V suppliers and Cross-linking Polyelefine Insulated Wire And Cable With Rated

View Product →

Application Decision Matrix: When to Use 12 AWG vs 14 AWG

Instead of memorizing rules, use the following matrix to match wire gauge to real-world projects. Each scenario is weighted for safety, code compliance, performance, and budget.

When in doubt, oversizing to 12 AWG costs slightly more now but eliminates the risk of redoing the work later. Still, a lighting-only 15A circuit wired with 14 AWG is perfectly safe, code-compliant, and easier to install in tight stud cavities.

Safety First: Matching Wire Gauge to Breaker Size

The most dangerous mistake in residential wiring is connecting a 14 AWG wire to a 20-amp breaker. NEC 240.4(D) explicitly limits 14 AWG copper to 15A overcurrent protection unless specific exceptions apply — and none do for typical branch circuits. The breaker must trip before the wire reaches its maximum ampacity; a 20A breaker on 14 AWG allows the conductor to carry up to 20A, exceeding its 15A rating and driving insulation temperatures beyond the safe limit. The result is insulation breakdown, short circuits, and a high probability of fire inside the wall.

The safe pairings are clear:

• 14 AWG copper — 15A circuit breaker maximum
• 12 AWG copper — 20A circuit breaker maximum
• 10 AWG copper — 30A circuit breaker maximum

Using 12 AWG on a 15A breaker is perfectly fine and even recommended for long runs or future upgrade flexibility. The larger wire simply provides extra thermal margin — in a 15A circuit, the 12 AWG conductor runs at only 50% of its 30A 90°C ampacity, while 14 AWG runs at 60%. That extra safety factor reduces connector hotspot risk and extends insulation life. For environments where ambient temperatures exceed 30°C, ampacity derating may also push a 15A circuit toward 12 AWG. Specialized high temperature resistant cables handle extreme conditions without derating.

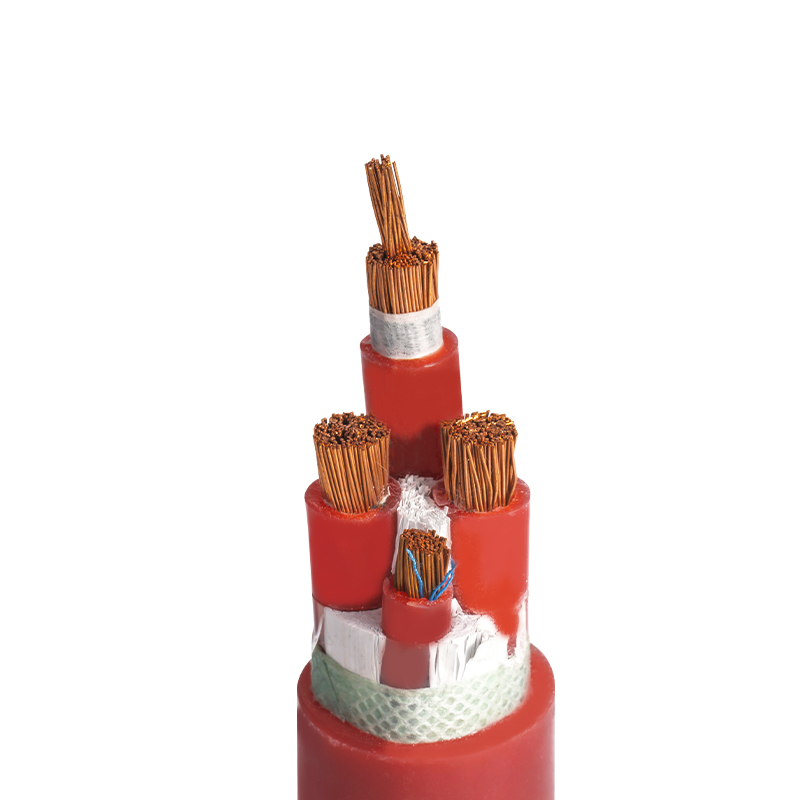

High Temperature Resistant Wire And Cable Suppliers, Company - Jiangsu Dongfeng Cable Co., Ltd.

Dongfeng China wholesale High Temperature Resistant Wire And Cable suppliers and High Temperature Resistant Wire And Cable company, details: StandardEnterprise StandardsApplicationsThis product can ke

View Product →

Installation Tips: Working with 12 vs 14 Gauge Wire

If you have ever pulled 12 AWG solid copper through a 1/2-inch conduit with two 90-degree bends, you understand why electricians often prefer 14 AWG for lighting circuits. 12 AWG has a larger minimum bend radius, requires more stripping force, and fills conduit faster — all increasing labor time and fatigue.

• Bend radius: 12 AWG solid copper typically requires a 4- to 5-inch radius for an unkinked 90-degree turn indoors; 14 AWG handles a 3-inch radius. In tight boxes, this alone can be the deciding factor.
• Conduit fill: A 1/2-inch EMT conduit can legally hold 12 conductors of 14 AWG but only 9 of 12 AWG. When pulling a 20A circuit with hot, neutral, and ground, you have room for three 14 AWG with ease, but 12 AWG leaves no room for future additions.
• Stripping force: 12 AWG NM cable requires about 18 pounds of force to strip the outer jacket cleanly; 14 AWG needs around 12 pounds. Over a day of rough-ins, that difference compounds into less hand fatigue and quicker terminations.
• Switches and receptacles: 12 AWG wires are harder to loop around screw terminals and often require back-wiring clamps rated for solid #12. Many older devices are labeled only for #14, creating a hidden code violation.

For multi-gang switch boxes or retrofit jobs where fishing wire through finished walls, 14 AWG is simply the more practical choice. But if you are wiring a whole house with 20A receptacle circuits, the extra effort of 12 AWG pays off in long-term capacity and safety. Use deep boxes, pre-twist strands with pliers, and select devices rated for both gauges to reduce installation pain.

Making the Final Call

The 12 vs 14 gauge debate doesn’t have a universal winner. 12 AWG delivers lower resistance, stays within voltage drop limits on long runs, and builds in safety margin. 14 AWG saves material cost, reduces installation labor, and is perfectly matched to 15A circuits under 75 feet. The decision ought to be driven by three questions: What is the overcurrent protection size? How long is the run? What loads will actually be connected — now and later?

If you answer those honestly and check the numbers, you will rarely guess wrong. For bulk cable supplies or engineered projects requiring higher voltages and industrial insulation, explore 6/1kV XLPE power cables — a category where conductor selection moves beyond AWG into systematic reliability. But for a Saturday afternoon light fixture swap, a coil of 14/2 and a 15A breaker will serve you just as well.
