Mineral Insulated Copper Cable: Fire-Rated Performance & Selection Guide

What Is Mineral Insulated Copper Cable?

A fire in a London underground station in 1987 killed 31 people — not from the flames, but from toxic smoke and circuit failure. That event accelerated the global shift toward fire‑rated cabling. Mineral insulated copper cable, often abbreviated MI cable or MICC, became a mandatory backbone for life‑safety circuits.

MI cable is an all‑inorganic construction: solid copper conductors, compacted magnesium oxide (MgO) powder as the insulation, and a seamless copper sheath that acts as both protective armour and circuit ground. There is no plastic, no rubber, nothing that can burn. The MgO insulating layer retains its dielectric properties at temperatures that would carbonise any organic material.

Three layers define every MI cable. The inner copper conductor carries current with low resistance. The tightly packed MgO insulation — a mineral powder compressed to a solid‑like density — surrounds the conductor and withstands continuous temperatures above 250 °C. The outer copper sheath provides mechanical protection, acts as the earth continuity conductor, and blocks moisture, oils, and corrosive gases. This simple, indestructible sandwich makes MI cable fundamentally different from any polymer‑insulated alternative.

Because there is no organic binder, MI cable emits zero smoke and zero halogen acid gas when exposed to fire. That property alone explains why building codes in Europe, North America, and Asia specify it for emergency lighting, fire‑alarm systems, and fire‑pump supply circuits. The cable can survive a 950 °C flame for three hours and still deliver power to safety‑critical equipment.

Key Performance Advantages Over Plastic‑Insulated Cables

Comparing MI cable to XLPE or PVC cables on fire resistance, temperature rating, and service life reveals a gap that shapes specification decisions. XLPE‑insulated power cables, such as those covered under IEC 60502‑1, offer good thermal stability up to 90 °C continuous — and short‑circuit temperatures of 250 °C for a few seconds. PVC cables are limited even further to 70 °C continuous. MI cable operates comfortably at 250 °C continuously and can survive exposure to 1083 °C until the copper sheath melts.

The table below captures the critical contrasts that drive project engineers toward mineral insulated copper cable for fire‑rated circuit protection.

This durability comes from the inorganic insulation. MgO powder is hygroscopic — it absorbs moisture if the cable end is left unsealed — but once properly terminated, it remains chemically and electrically stable for decades. That is why a correctly installed MI cable often outlives the building it serves. For projects where low‑smoke performance is combined with robust mechanical protection, specifiers often evaluate XLPE‑insulated power cables with LSZH sheaths; however, those cannot match the inherent fire‑survival and zero‑emission properties of mineral insulated cable.

XLPE/PVC Insulated Power Cable for Rated Voltage 0.6/1kV Suppliers, Company - Jiangsu Dongfeng Cable Co., Ltd.

Dongfeng China wholesale XLPE/PVC Insulated Power Cable for Rated Voltage 0.6/1kV suppliers and XLPE/PVC Insulated Power Cable for Rated Voltage 0.6/1kV company, details:

View Product →

MI cable eliminates the need for external fire barriers or intumescent coatings. Its own copper sheath is the fire barrier. That simplifies installation, reduces fire‑stopping complexity, and provides a predictable total installed cost.

Mineral Insulated Cable Standards and Certifications

Multiple national and international standards define performance requirements for MI cable. Engineers use these standards to verify that a cable will survive the specific fire scenario and electrical stress expected on site.

The most frequently cited standard in Europe is BS 6387, which tests cables under fire alone, fire with mechanical shock, and fire with water spray (the CWZ classification). BS 6387 Category CWZ proves that the cable remains functional after three hours at 950 °C while water is sprayed and mechanical impacts are applied. IEC 60754‑1 and ‑2 measure halogen gas emission and acid gas conductivity, both zero for mineral insulated copper cable. In North America, UL 1709 evaluates hydrocarbon pool fire exposure for 30 minutes — a severe test required for oil‑and‑gas installations. China’s GB/T 13033 series directly addresses mineral insulated cable specifications.

Project specifications often stack these tests. A single cable may need to meet BS 6387 CWZ, IEC 60754, and still maintain insulation resistance above 100 MΩ per kilometre after the fire test. That combination is impossible for any non‑mineral insulation. The copper sheath also acts as a natural radiation shield, making the cable suitable for nuclear applications where an additional qualification under IEEE 383 may be required.

How to Choose the Right MI Cable: Voltage, Ampacity & Application

Selecting a mineral insulated copper cable means matching voltage rating, conductor cross‑section, and sheath configuration to the circuit’s function and environment. The decision tree starts with system voltage.

Voltage Rating First

MI cable is commonly manufactured for 300/500 V, 600/1000 V, and 1.9/3.3 kV classes. The 600/1000 V grade covers the vast majority of building fire‑safety circuits — fire pumps, smoke extraction fans, emergency lighting. For heavier motor loads in industrial plants, the 1.9/3.3 kV rating is available with larger conductor sizes. Always verify that the cable’s rated voltage Uo/U matches or exceeds the system’s nominal phase‑to‑earth / phase‑to‑phase voltage.

Ampacity and Conductor Size

Because MI cable operates at much higher temperatures than standard building wire, its current‑carrying capacity per mm² is not a direct copy of the XLPE or PVC tables. The compacted MgO insulation and copper sheath improve heat dissipation. A 4 mm² MI cable run in free air at 30 °C ambient may carry up to 44 A, compared to roughly 36 A for an equivalent 4 mm² PVC cable. For a quick reference, use BS 7671 Appendix 4 or IEC 60364‑5‑52 derived MI‑specific tables.

The table below gives approximate current ratings for 600/1000 V MI cable with a copper sheath used as earth, installed on cable tray in free air.

Environment and Sheath Selection

Standard copper sheath suits most dry and protected indoor locations. For embedded‑in‑concrete or direct‑burial applications, an outer HDPE oversheath or LSZH jacket adds moisture protection and mechanical cushioning. In chemical plants with corrosive atmospheres, a PVC‑coated copper sheath or a tinned copper version may be specified. The copper sheath must always be bonded to the earthing system at one end, preferably at the supply source, to avoid circulating currents.

For detailed voltage‑rating and construction options, consult our mineral insulated copper cable product specifications.

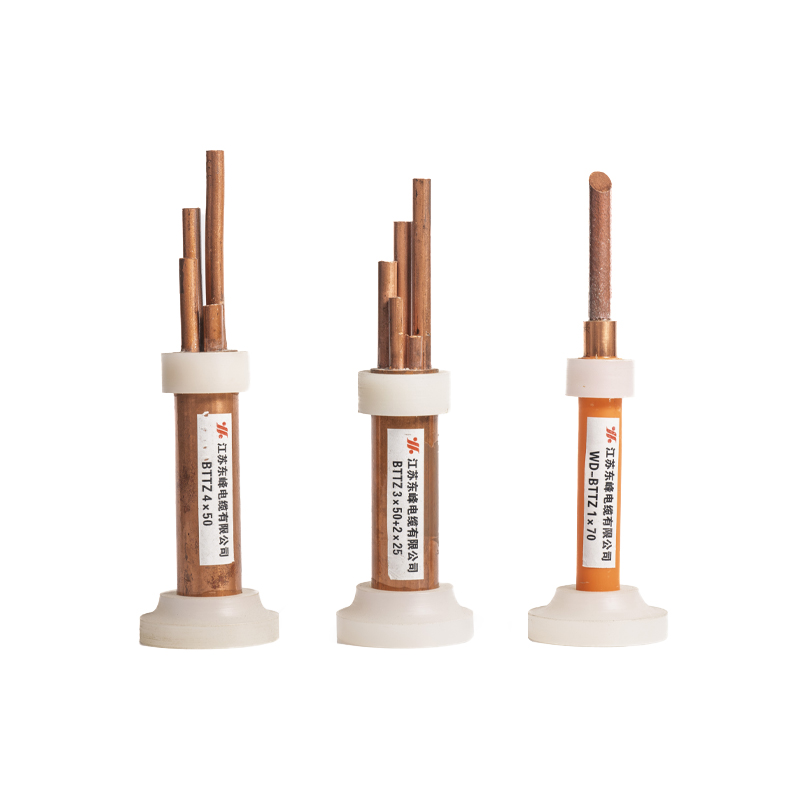

Mineral Insulated Cable Suppliers, Company - Jiangsu Dongfeng Cable Co., Ltd.

Dongfeng China wholesale Mineral Insulated Cable suppliers and Mineral Insulated Cable company, details: 1. Explosion Proof and High Corrosion Resistance High Temperature Resistance Resistance to Mech

View Product →

MI Cable Installation: Tools, Steps & Common Pitfalls

Installing mineral insulated cable demands different practices than pulling PVC‑jacketed wires through conduit. The copper sheath is rigid but can be bent using dedicated tools. The biggest risk is moisture entry into the MgO before the cable ends are sealed.

1. Measure and cut the cable with a hacksaw or dedicated MI cable cutter. Leave an extra 150 mm at each end for termination.
2. Strip the copper sheath using a rotary stripping tool; do not nick the conductors. Remove the MgO powder that is exposed, and wire‑brush the conductor tips clean.
3. Immediately install the gland and pot seal. Apply epoxy resin compound or a pre‑formed hot‑crimp seal within 24 hours of cutting — the MgO insulation absorbs ambient humidity rapidly, and moisture ingress can lower insulation resistance below acceptable limits.
4. Bend the cable to its minimum bending radius — typically 6 times the cable’s outer diameter — using a lever‑type bending tool to avoid sheath kinking.
5. Terminate the conductors into the switchgear or junction box using approved MI connectors, and connect the copper sheath to the earth terminal. Test insulation resistance with a 500 V insulation tester; readings below 20 MΩ after sealing indicate moisture contamination.

Five mistakes plague MI cable projects. First, leaving cut cable ends unsealed overnight in humid conditions — it destroys the insulation resistance. Second, bending without proper tools, which crimps the sheath and can crack the MgO. Third, omitting dedicated MI‑rated glands and using plastic cable glands that cannot maintain the fire barrier. Fourth, failing to bond the sheath at one point, leading to potential loop currents. Fifth, skimping on termination training; MI termination is a craft that requires certification in many jurisdictions.

Cost Analysis: Is Mineral Insulated Cable Worth the Investment?

The sticker price of MI cable often raises eyebrows during budgeting. Copper as both conductor and sheath, plus the energy‑intensive MgO compaction process, makes the material cost per metre 2 to 3 times higher than an equivalent XLPE armoured cable. Yet a full lifecycle cost picture tells a different story.

Cost Breakdown

A typical fire‑rated circuit serving a 30 kW fire pump over 50 m includes three cost layers. Material cost — the cable itself — accounts for 35‑40% of the total installed cost. Installation labour runs higher than for steel‑wire armoured cable because of the skilled termination work, contributing 35‑40%. The remaining 20‑25% covers cable tray, glands, fire‑stopping, and testing.

Lifecycle Savings

The largest saving is the elimination of fire‑rated supports, intumescent wraps, and separate fire stopping that polymer‑based fire‑resistant cables require. A copper‑sheath MI cable is its own fire barrier, so the cost of supplemental fire protection drops to near zero. Maintenance costs are negligible. Unlike steel‑wire armour, the copper sheath does not corrode through and require replacement after a decade, and periodic insulation‑resistance testing suffices as condition monitoring.

The final cost difference narrows significantly when fire‑stopping requirements are properly accounted for. In projects where insurance or regulatory penalties for a failed fire circuit are high, the marginal premium for MI cable becomes almost invisible against the risk of a non‑functional safety system during a real fire.

Real‑World Applications: Where MI Cable Is a Must‑Have

Mineral insulated copper cable finds its strongest specifications in environments where a cable failure directly threatens life safety or critical operations. Five application profiles illustrate typical selection reasoning.

1. High‑Rise Commercial Buildings

Fire‑alarm loops, smoke control fan supplies, and fire‑fighter lift circuits must remain operational for at least three hours during a blaze. BS 9999 and NFPA 72 explicitly require circuit‑integrity survival. MI cable passes the required CWZ test without additional enclosures, making it the most space‑efficient solution.

2. Petrochemical and Refinery Installations

Exposed to hydrocarbon flash fires and corrosive sulphur compounds, these sites demand UL 1709 or BS 6387 CWZ ratings and inherent chemical resistance. The copper sheath resists oil, acids, and alkalis, while the inorganic insulation cannot sustain a secondary fire. Many projects combine MI cable with flexible fireproof cables for short routing segments where vibration is high.

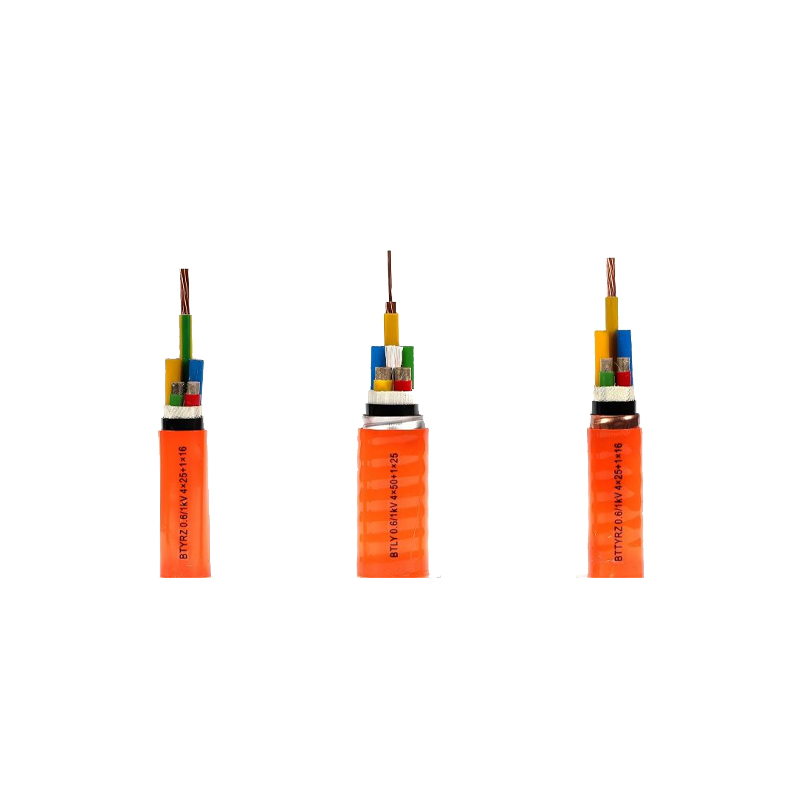

Flexible Fire-Proof Cable For Rated Voltage 0.6/1kV Suppliers, Company - Jiangsu Dongfeng Cable Co., Ltd.

Dongfeng China wholesale Flexible Fire-Proof Cable For Rated Voltage 0.6/1kV suppliers and Flexible Fire-Proof Cable For Rated Voltage 0.6/1kV company, details: StandardThe product is manufactured acc

View Product →

3. Tunnel and Metro Ventilation

Road and rail tunnels present a challenging mix of limited access, high ambient temperatures, and zero‑tolerance smoke policy. MI cable’s zero‑smoke property is essential; toxic gases in a confined tunnel stall evacuation and hamper rescue. Installation teams often use pre‑fabricated harnesses with factory‑sealed terminations to reduce on‑site labour in the tunnel.

4. Hospital Life‑Safety Circuits

Operating theatres, ICUs, and life‑support equipment perform only as well as the power supply behind them. HTM 06‑01 in the UK and equivalent standards worldwide require mineral insulated cable for essential electrical systems. The absence of rubber or plastic in the cable path eliminates smoke that could contaminate sensitive medical environments.

5. Data Centre Fire‑Protection Loops

While data centres primarily use huge quantities of flexible power‑distribution cables, the detection and suppression control circuits rely on MI cable because a data hall fire cannot be allowed to sever the fire‑suppression activation loop. The cable’s small diameter and high ampacity carry DC control signals for pre‑action sprinkler systems over long distances.
