What Is Fire System Cable? (Definition & Core Functions)

Fire system cable (often labeled fire alarm cable) is a power-limited circuit cable designed to maintain circuit integrity during fire conditions. It carries signals and low-voltage power between fire alarm control panels, initiating devices, and notification appliances. Unlike standard building wire, it must meet strict flame-propagation and survivability standards set by UL and NFPA.

What separates a fire-rated cable from ordinary THHN or tray cable is its jacket material and construction. A fire system cable’s jacket resists flame spread, limits toxic smoke, and—depending on the rating—can survive direct flame for a specified period. That performance is mandatory in plenum airspaces, vertical riser shafts, and areas where life safety depends on continued operation.

The most critical takeaway: choosing the wrong cable rating for the installation area is the single largest source of code violations and can lead to project delays and expensive rewiring.

The 3 Main Types of Fire Alarm Cable: FPL, FPLP & FPLR

Fire alarm cables carry a letter code that defines where they can be installed legally. The three core designations are FPL (general purpose), FPLP (plenum-rated), and FPLR (riser-rated). Each code corresponds to a specific UL test for flame propagation and smoke generation. Beyond the basic three, you may see armored variants or circuit-integrity suffixes, but FPL, FPLP, and FPLR cover the vast majority of installations.

FPL cable is rated for horizontal runs in non-plenum spaces and general indoor areas. It cannot be installed inside air-handling ducts or plenum ceilings without conduit. FPLP cable uses a low-smoke, low-flame-spread jacket tested under NFPA 262, qualifying it for open plenum spaces without conduit. FPLR cable is designed for vertical riser shafts; it resists flame propagation upward between floors. Using FPL where FPLP is required will result in an immediate code rejection, and the cost of rework far outweighs the initial cable premium.

Key Specifications You Must Check Before Buying

Narrowing down the cable rating is only the first step. To ensure the cable performs reliably over the system’s lifetime, you need to verify five parameters:

• Conductor AWG (14/16/18). 18 AWG works for short signal loops, but long notification appliance circuits often demand 14 AWG to limit voltage drop. Undersizing leads to dim strobes and silent horns at the far end of a building.
• Number of conductors (2, 4, 6, or 8). A conventional zone may need only a 2-conductor cable, whereas addressable systems frequently use a 4-conductor shielded pair for data and power.
• Jacket material (PVC, LSZH, FR-PVC). In enclosed public spaces such as theaters or hospitals, low-smoke zero-halogen jackets are increasingly mandatory to protect evacuees from toxic fumes.
• Shielding type (unshielded, foil shield, braided shield). Unshielded cable is sufficient for many analog circuits, but digital addressable systems should use twisted-pair foil-shielded cable to prevent data corruption from adjacent power lines.
• Circuit integrity (CI) requirement. When the specification demands that a fire alarm notification circuit remain operational for 2 hours under direct flame, you need a cable tested to UL 2196, such as mineral insulated cable or a CI-rated jacketed cable.

Conventional vs Addressable Systems: How Cable Choice Differs

The fire alarm system architecture directly influences cable selection. A conventional system zones devices onto simple 2-wire circuits, while an addressable system communicates digitally with each device over a data loop. The wrong cable can create noise, false alarms, or complete communication loss.

For addressable loops, specify a shielded FPLP or FPLR cable with a drain wire. Continuous shield termination at the panel and at each device prevents ground loops while blocking electromagnetic interference from nearby HVAC equipment and power wiring.

NFPA 72 Compliance: What the Code Says About Fire Alarm Cable

NFPA 72, National Fire Alarm and Signaling Code, sets the minimum performance and installation requirements for fire alarm circuits. Compliance is not optional; the authority having jurisdiction (AHJ) will verify cable ratings during inspection.

Key requirements include:

• Cables in air-handling plenums must be listed as plenum-rated (NFPA 90A, referenced by NFPA 70 Article 300.22). That means FPLP or equivalent.
• Vertical riser cables must pass the UL 1666 vertical flame test. FPLR satisfies this requirement without conduit.
• All fire alarm cables must be marked with their type and rating at intervals not exceeding 24 inches (NFPA 72, 12.4.2).
• Where circuit survivability is specified (e.g., high-rise voice evacuation systems), the cable must meet a 2-hour fire resistance rating per UL 2196 (NFPA 72, 12.4.1).

An FPL cable is never permitted in a plenum space—even inside conduit—unless the conduit is installed in a concrete-encased fire-rated assembly. This single rule drives most specification corrections.

5 Common Fire Alarm Cable Selection Mistakes (And How to Avoid Them)

1. Specifying FPL for a plenum ceiling. The AHJ will flag it immediately. Solution: Always confirm whether a ceiling functions as a plenum; if yes, default to FPLP.
2. Using unshielded cable on an addressable loop. Even sporadic EMI can cause data errors and nuisance alarms. Solution: Use twisted-pair foil-shielded cable, grounded at one end only.
3. Ignoring voltage drop on long notification circuits. A 1,200-foot run of 18 AWG can lose over 5 volts, causing strobes to fail. Solution: Calculate voltage drop and upgrade to 14 AWG when needed.
4. Mixing FPL and FPLP on the same circuit without proper junction box ratings. The entire circuit must meet the highest rating of any enclosed space it passes through. Solution: Design the circuit with a single, consistent cable rating.
5. Overlooking LSZH requirements in high-occupancy spaces. PVC jackets release dense, acidic smoke. Solution: In assembly occupancies above 300 people, select low-smoke zero-halogen jackets even if the code doesn’t explicitly mandate them.

Fire System Cable Selection Checklist

Use the table below before issuing a purchase order. It covers the dimensions that determine both code compliance and long-term system reliability.

When in doubt, involve the cable manufacturer’s engineering team early. A 30-minute review can prevent a six-figure change order later.

Why Choose Our Fire System Cables?

Sourcing the right cable is half the battle. Having a supplier who can deliver it on time, with full certifications, is the other half. Our special cable manufacturing program covers the entire fire alarm cable spectrum, from standard FPL and FPLR to high-performance plenum-rated and circuit-integrity cables.

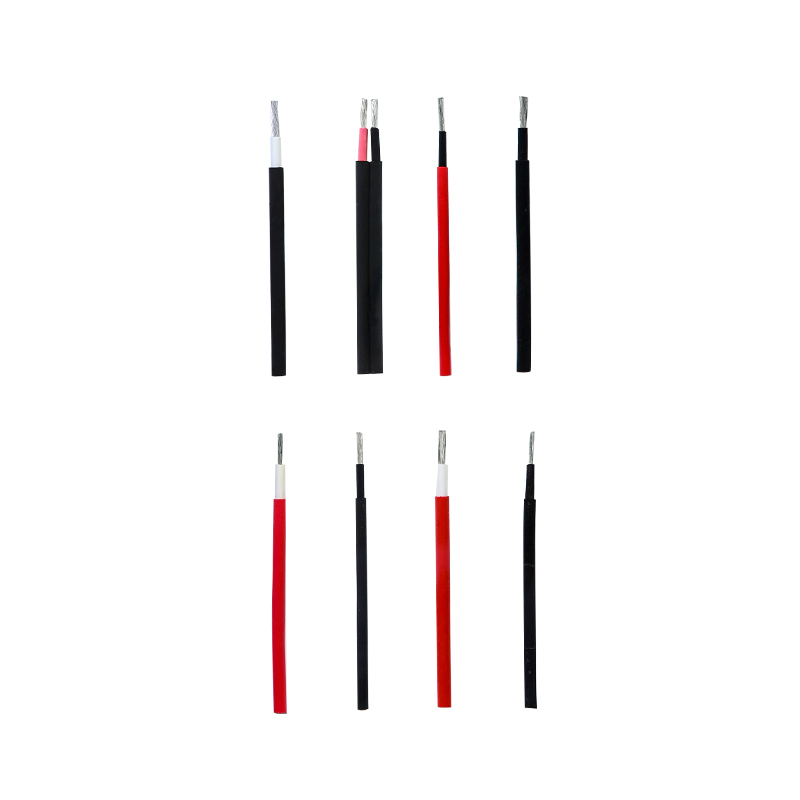

High-temperature Resistant Special Cables Manufacturers, Factory
